تفاصيل المنتج:
شروط الدفع والشحن:
|
| القدرة المقدرة: | 3ton | الوزن التشغيلي: | 10300 كجم |
|---|---|---|---|
| سعة الجرافة: | 1.7 م 3 | محرك: | ويتشاي ديوتز |
| قوة المحرك: | 92 كيلو واط / 2200 دورة في الدقيقة | نموذج المحرك: | Wp6g125e22 |
| النظام الهيدروليكي: | التحكم في عصا التحكم |

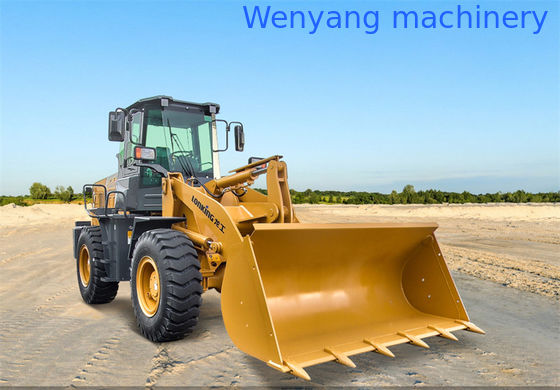

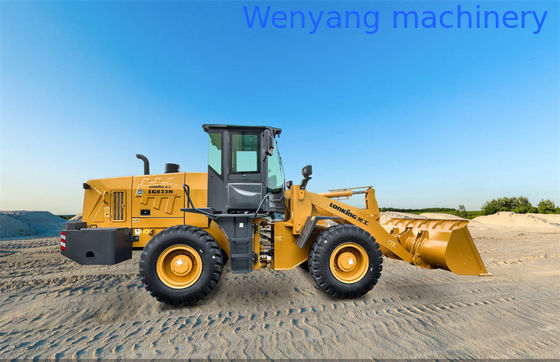

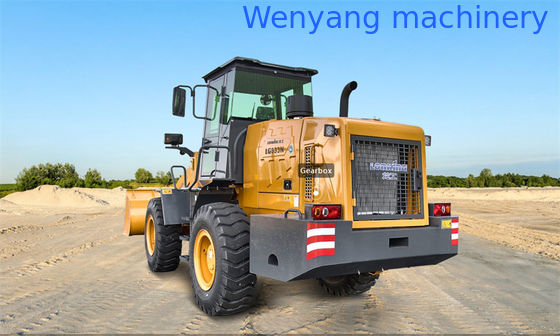

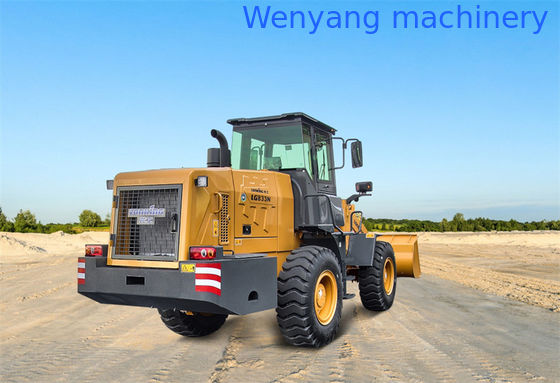

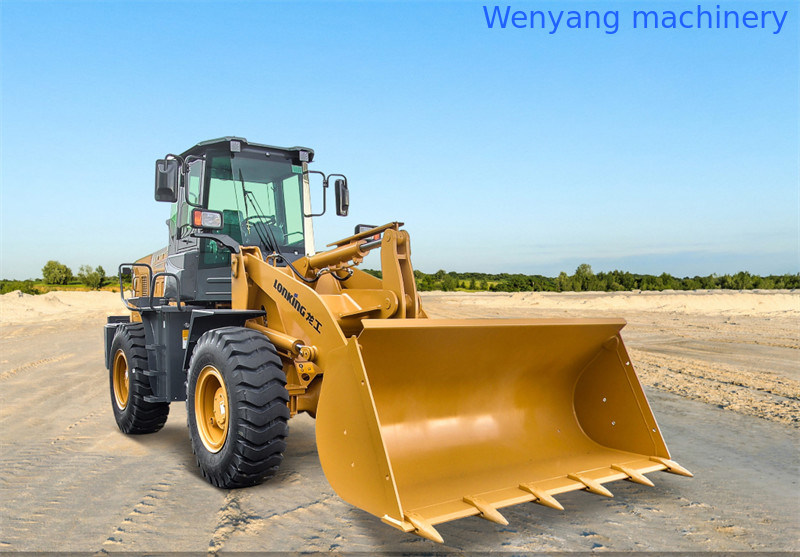

Lonking CDM833 LG833N wheel loader 3TON with Weichai deutz engine 92kw WP6G125E22
Top Brand Wheel Loader Manufacturer
200,000 Units More Working Worldwide
Pay Loader, Chinese Pay Loader, Chinese Wheel Loader, Chinese 3T Wheel Loader, Chinese 5T Wheel Loader,
Chinese Large Wheel Loader, Chinese Small Wheel Loader, 1T-2.3T wheel loader
Cummins Engines and ZF Transmission & Axles
Pilot Control System, Automatic Leveling
Complete line of applications and accessories
Easy maintenance & Outstanding After-sales
Top brand quality, reliable and save 20% plus
Construction Machinery CDM833 features:
POWERFUL WEICHAI DEUTZ ENGINE
LONKING TRANSMISSION
LONKING AXLES
ROPS&FOPS CABIN
VARIETY WITH ATTACHMENT
CONVENIENT MAINTENANCE
RATED POWER:92kW/2200rpm
BUCKET CAPACITY:1.7m³
RATED PAYLOAD:3000kg
OPERATING WEIGHT:10300kg
|
Model |
CDM833 |
|
Bucket Capacity(m³) |
1.7-2.5 |
|
Rated Payload (kg) |
3000 |
|
Rated Power(kw/rpm) |
92/2200 |
|
Operating Weight (kg) |
10300 |
|
Traction Force(kN) |
97 |
|
Breakout Force (kN) |
105 |
|
Dump Clearance at Max.Lift(mm) |
2904 |
|
STANDARD EQUIPMENT |
|
|
WEICHAI Engine |
Mechanical Shift Control |
|
LONKING Transmission |
Standard Lift&Bucket (1.7m³) |
|
Mechanical Powershift Control |
ROPS&FOPS Cabin |
|
LONKING Axles |
Air Conditioner |
|
Flexible Shaft Controlled Caliper Brake(Parking Brake) |
Radio&MP3 |
|
|
Mechanical Instrument Panel |
|
OPTIONAL EQUIPMENT |
|
|
Cold Starting (-35℃) |
Quick-change Bucket(1.7m³) |
|
Oil-bath Air Filter |
Bucket 1(2.0m³) |
|
17.5R25 ★★ L-3 TL |
Enlarged Bucket(2.3m³) |
|
3rd Spool for Auxiliary Function |
Coal Bucket(2.5m³) |
|
3-lever Control for Lift&Tilt&Auxiliary Function |
3 Piece Cutting Edge,Bolt-on Type Bucket |
|
Sliding Cabin Window |
Log Fork |
|
Electric Heating Rear Window |
Grasping Pitchfork |
|
Lockable Oil Tank Cap |
Side Dump Bucket |
|
Rear View Camera |
Fork(Quick-change Only) |
|
Pressure Testing Connector |
4in1 Bucket(Quick-change Only) |
|
High Lift &Additional Counterweight |
Snow Blade(Quick-change Only) |
|
Quick-change Coupler |
|
